The 48V battery product has a capacity covering 50Ah-200Ah, which can be widely used in various macro and micro-station backup scenarios

Product Features

The 48V battery product has a capacity covering 50Ah-200Ah, which can be widely used in various macro and micro-station backup scenarios

Product Specifications

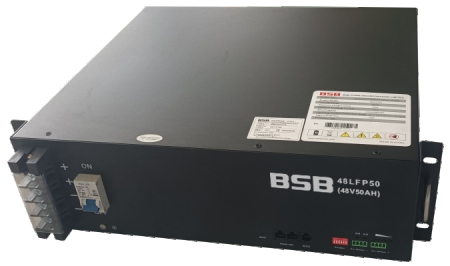

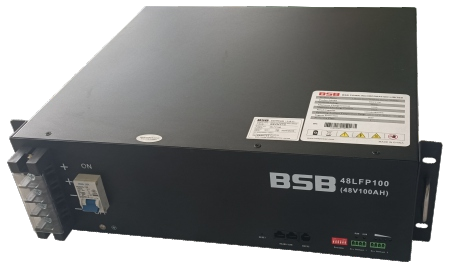

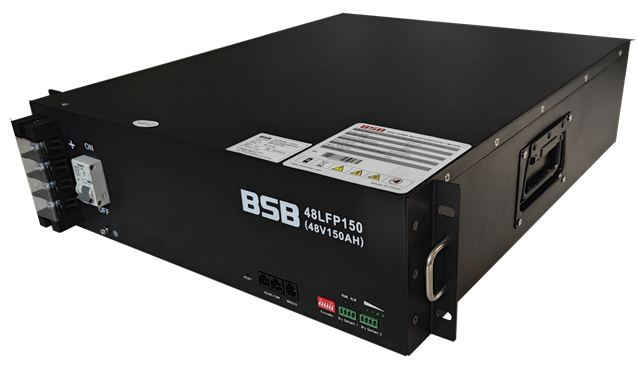

48LFP5048LFP10048LFP150-3U
Nominal Voltage48V48V48V
NominaCapacity50Ah@0.5C100Ah@0.5C150Ah@0.5C
Max.Charge Current50A(1C)100A(1C)100A
End Charging Voltage55V55V55V
Rated Discharging Current50A(1C)50A(0.5C)75A(0.5C)
Max.Discharge Current50A(1C)100A(1C)100A
End Discharging Voltage40.5V40.5V40.5V
Operating EnvironmentTemperature-10~55C-10~55C-10~55C
Storage Temperature-20~45℃(in 1 month)-20~45C(in 1 month)-20~45C(in 1 month)
15~35℃(in6months)15~35℃(in6months)15~35℃(in6months)
Design Life≥10 years≥10 years≥10 years
CommunicationRS232,RS485RS232,RS485RS232,RS485
Cycle Life3500cycles @0.5C 25℃ 80%DOD4000cycles @0.5C25℃ 80%DOD3500cycles @0.5C 25℃ 80%DOD
Dimensions(W*D*H)442mm*320mm*131mm442mm*399mm*130mm442mm*530mm*131mm
excluding mounting earsexcluding mounting earsexcluding mounting ears
Weight≤23 kg≤40 kg≤54 kg
*6000cycle coming soon
