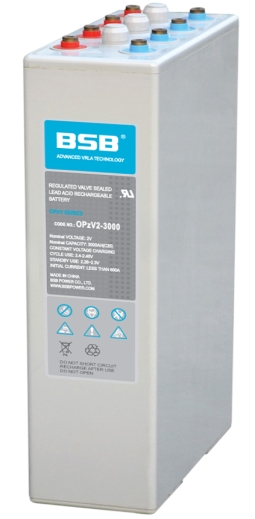

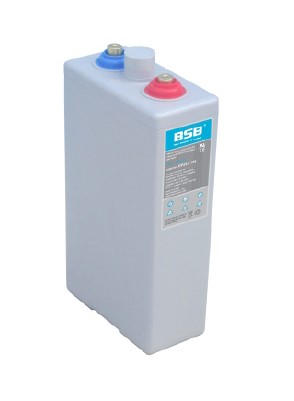

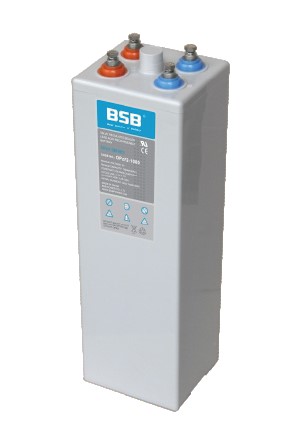

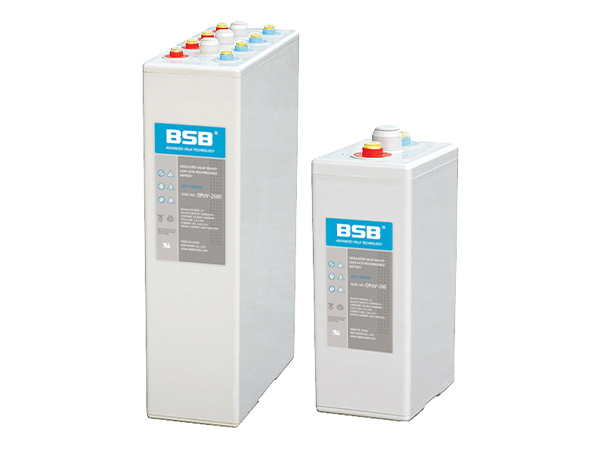

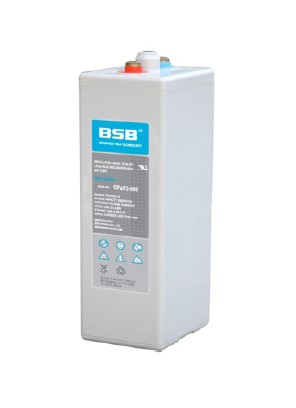

OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery
OPzV Series Tubular Gel Battery

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using die-casted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions. This series is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Product Features

1）20 + years design life at floating condition

2）Wide operating temperature range from-40℃ to 60℃

3）Tubular positive plate with prolonged cycle life

4）Nano Silica gel electrolyte

5）Lead Calcium die cast grid with improved corrosion resistance capability

6）Low self-discharge rate and long shelf life(1 year at 20℃)

7）Excellent deep discharge recovery capability


Product Specifications

Code No.

Voltage

Capacity

Length

Width

Height

Total Height

Terminal

(V)

(Ah)

mm

in

mm

in

mm

in

mm

in

Type

TG12-100

12

100

407

16

175

6.89

235

9.25

235

9.25

M8

TG12-150

12

150

532

20.9

210

8.27

217

8.54

217

8.54

M8

TG12-200

12

200

499

19.6

259

10.2

220

8.66

220

8.66

M8

OPzV2-150

2

150

103

4.06

206

8.11

354

13.94

390

15.35

M8

OPzV2-200

2

200

103

4.06

206

8.11

354

13.94

390

15.35

M8

OPzV2-250

2

250

124

4.88

206

8.11

354

13.94

390

15.35

M8

OPzV2-300

2

300

145

5.71

206

8.11

354

13.94

390

15.35

M8

OPzV2-350

2

350

124

4.88

206

8.11

471

18.54

506

19.92

M8

OPzV2-420

2

420

145

5.71

206

8.11

471

18.54

506

19.92

M8

OPzV2-500

2

500

166

6.54

206

8.11

471

18.54

506

19.92

M8

OPzV2-600

2

600

145

5.71

206

8.11

646

25.43

681

26.81

M8

OPzV2-800

2

800

191

7.52

210

8.27

646

25.43

681

26.81

M8

OPzV2-1000

2

1000

233

9.17

210

8.27

646

25.43

681

26.81

M8

OPzV2-1200

2

1200

275

10.83

210

8.27

646

25.43

681

26.81

M8

OPzV2-1500

2

1500

275

10.83

210

8.27

796

31.34

831

32.72

M8

OPzV2-2000

2

2000

399

15.71

212

8.35

772

30.39

807

31.77

M8

OPzV2-2500

2

2500

487

19.17

212

8.35

772

30.39

807

31.77

M8

OPzV2-3000

2

3000

576

22.68

212

8.35

772

30.39

807

31.77

M8
